Description

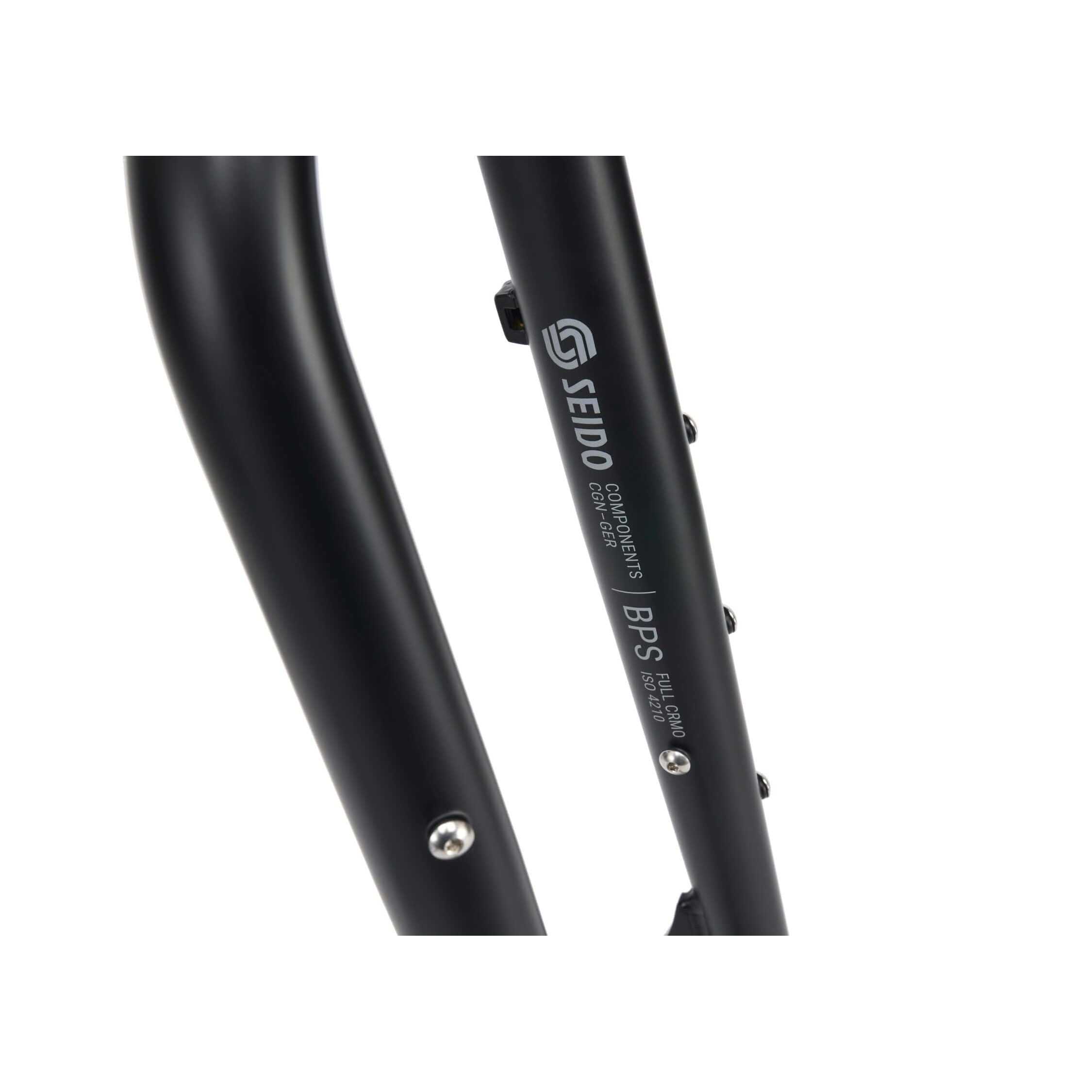

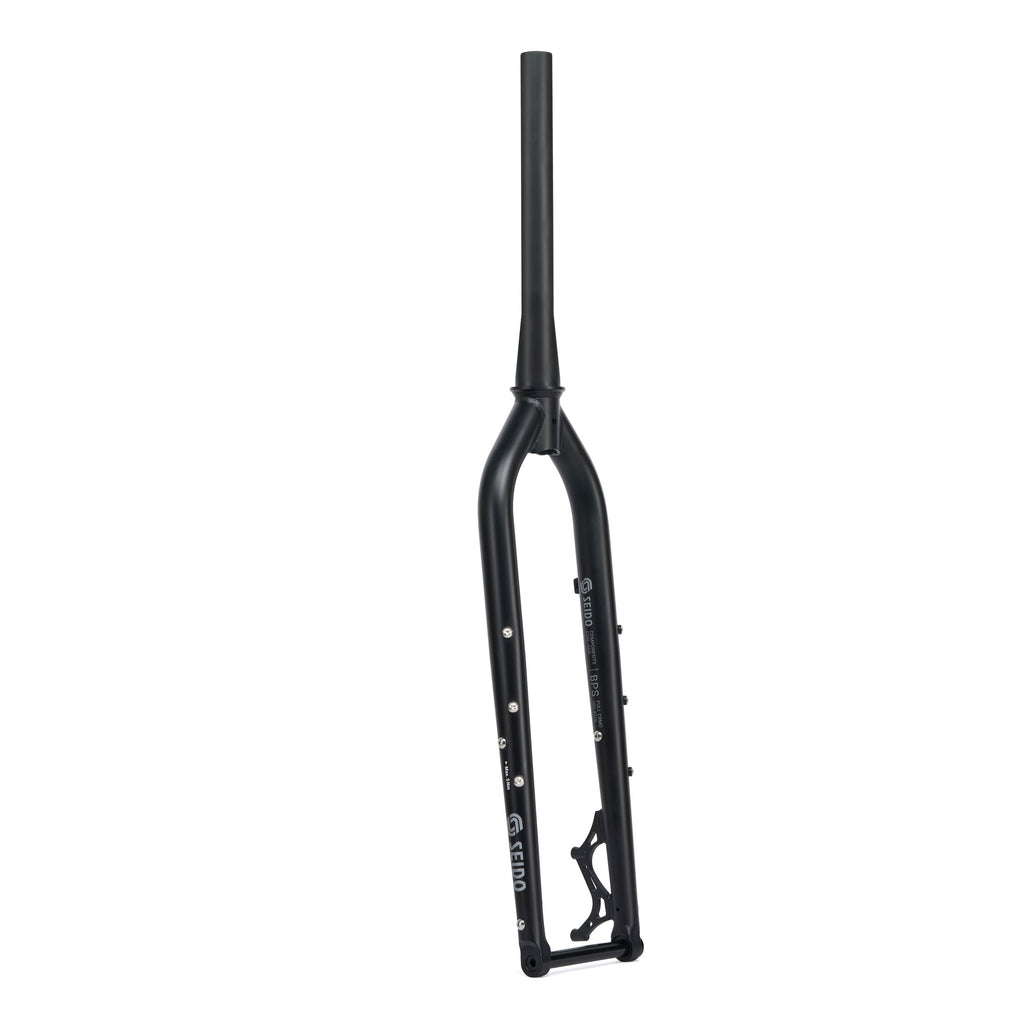

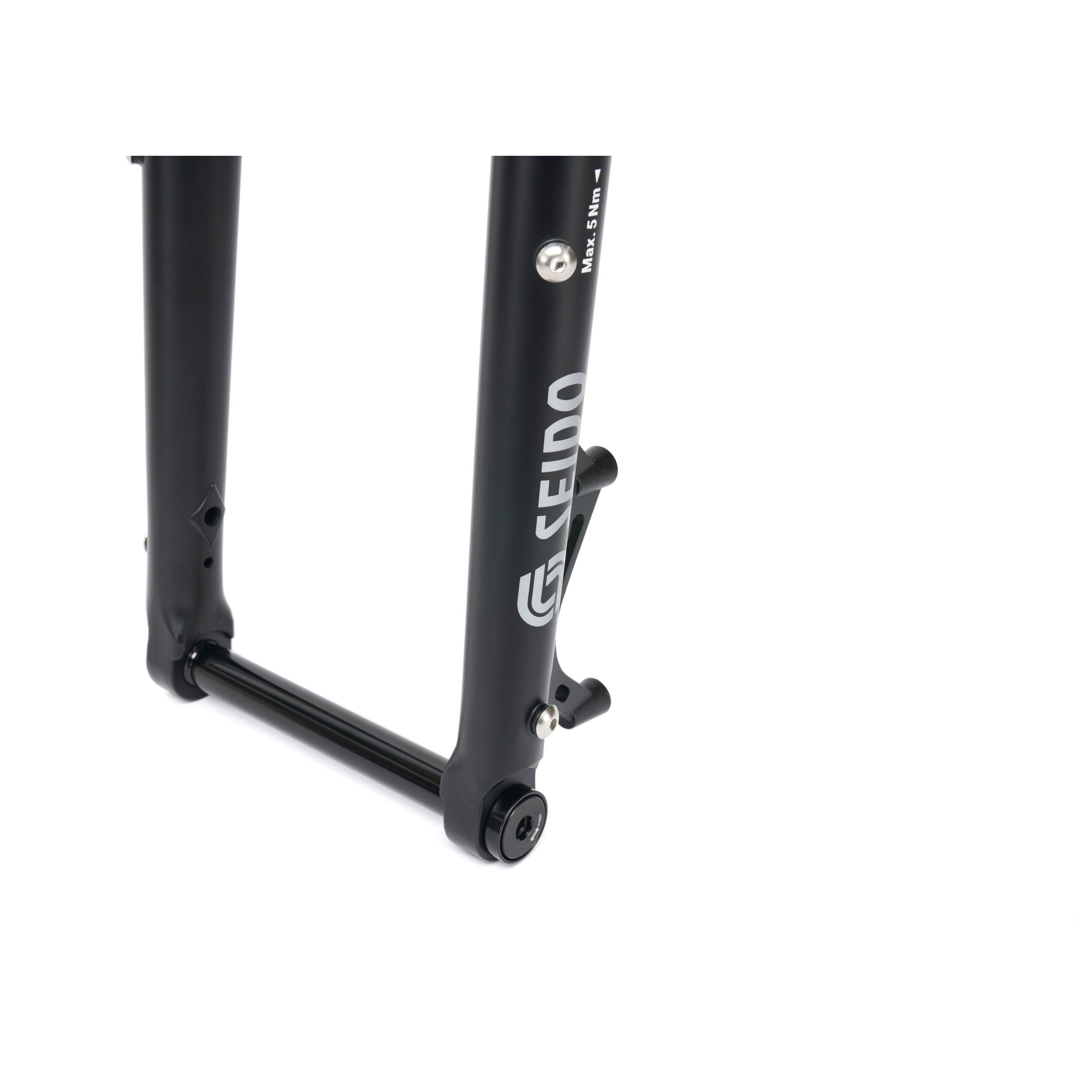

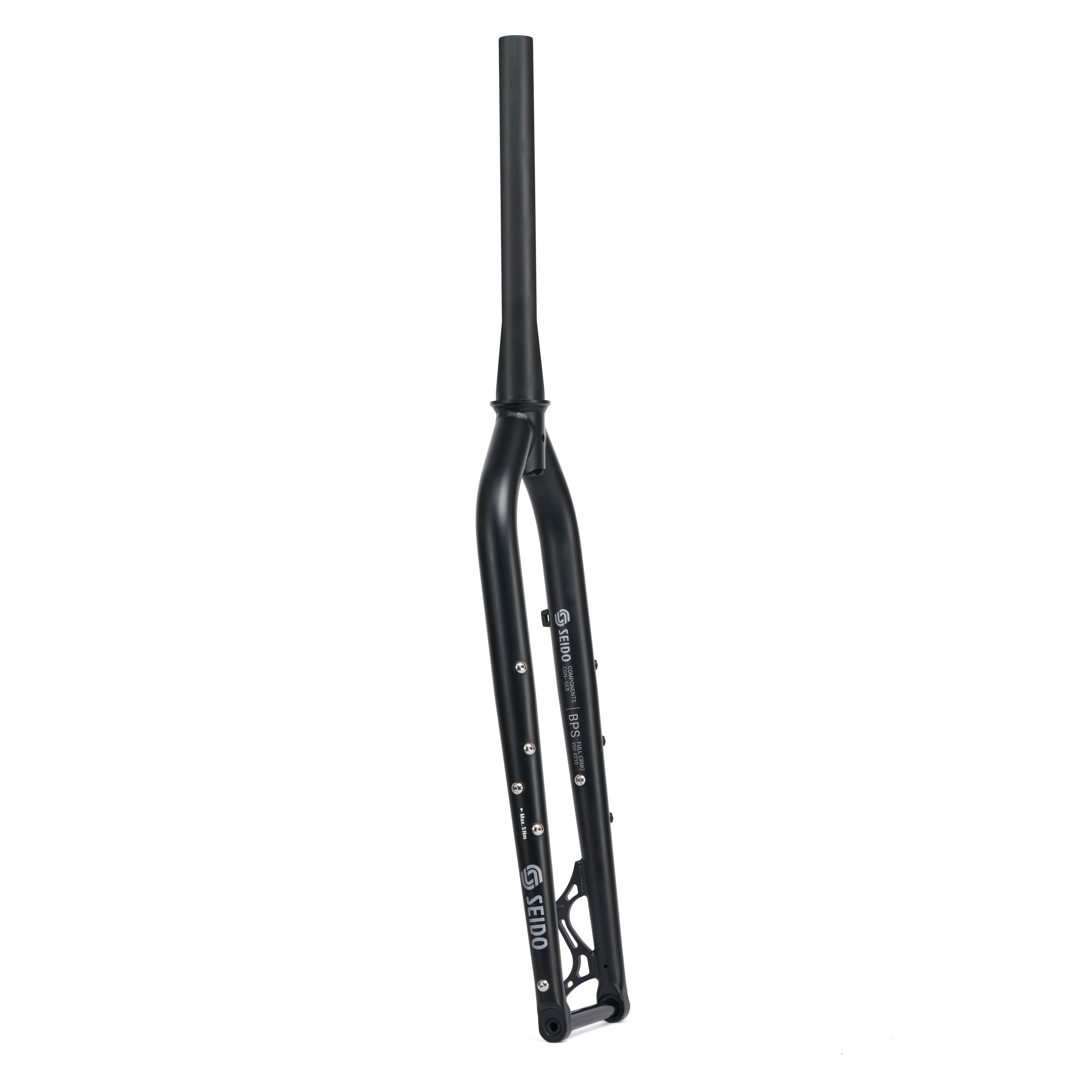

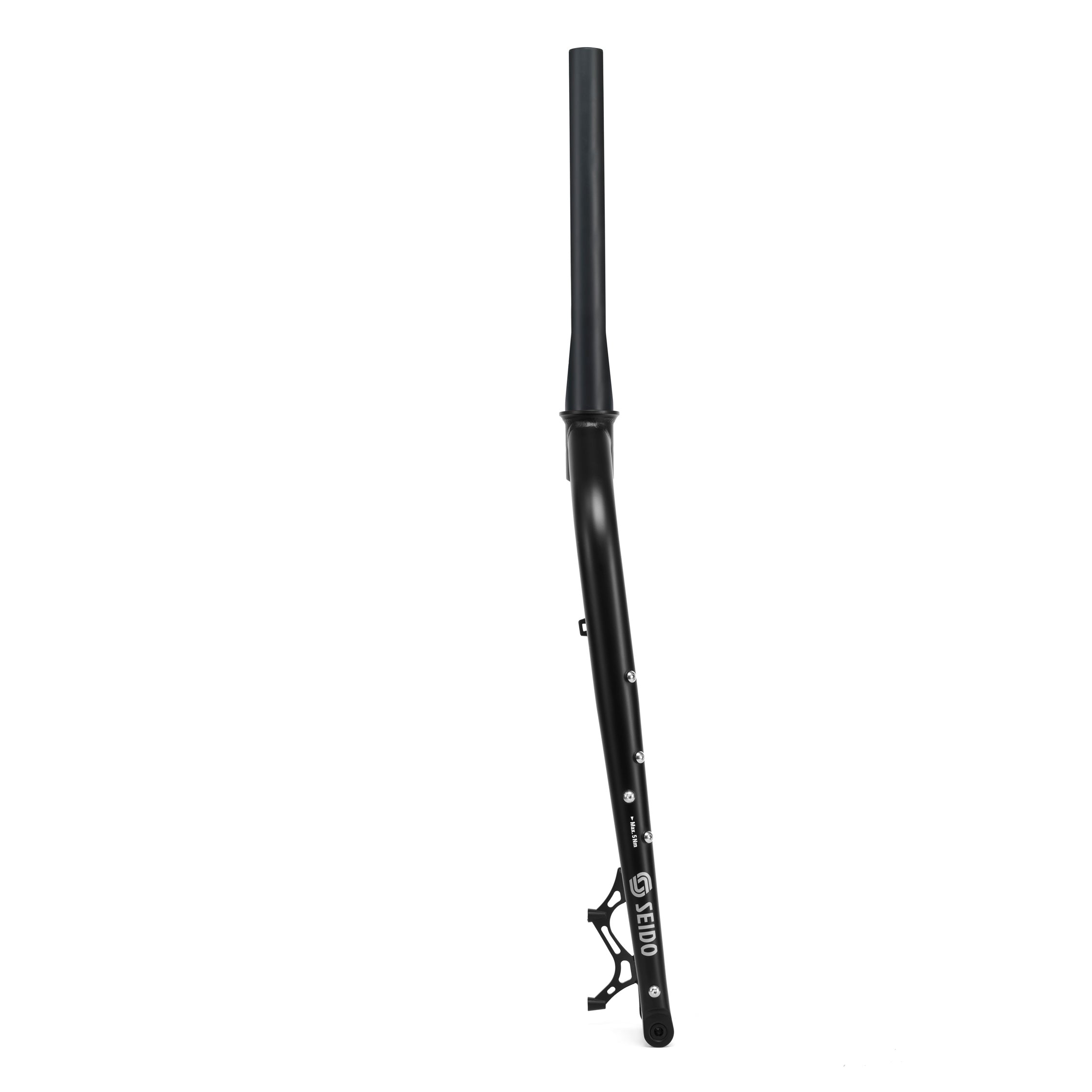

Built to withstand the most unforgiving conditions, our BPS (Bike Packing Steel) fork is made from proven Cr-Mo steel and fitted with all the mounts required to kit out your front-end with lights, racks and cages. Designed to replace suspension forks on world-exploring MTBs, it can fit a huge variety of bikes intended to accommodate 120-140mm suspension forks. BPS is there for the serious expedition, where there is no room compromise functionality.
COLOR
Black
MATERIAL
Cr-Mo steel
STEERER
Tapered, 1-1/8" - 1-1/2", 300 mm Length
S.H.I.S. DIMENSIONS
28.6 | 40
OFFSET
51 mm
AXLE TO CROWN
500 mm
HUB SPACING
110 mm

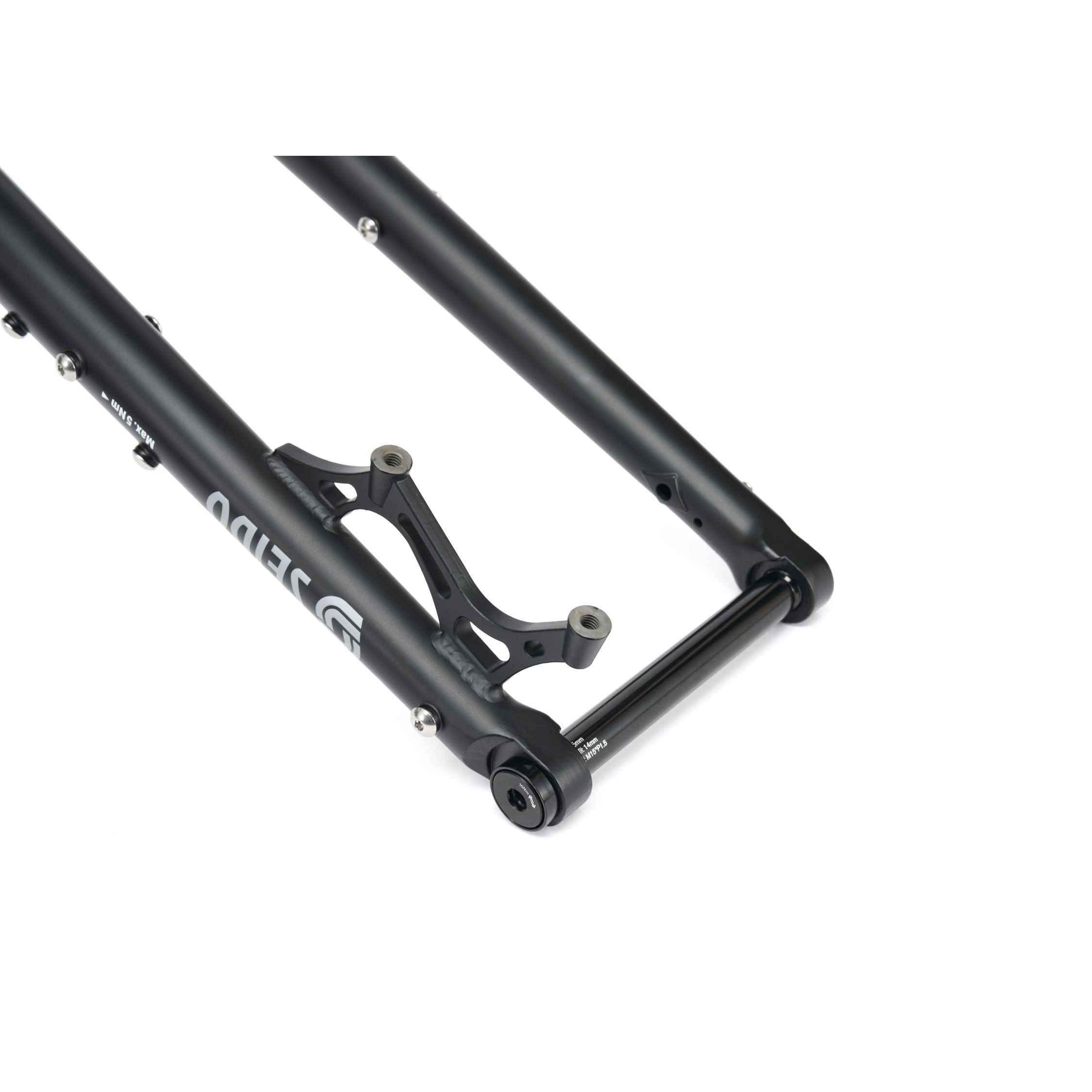

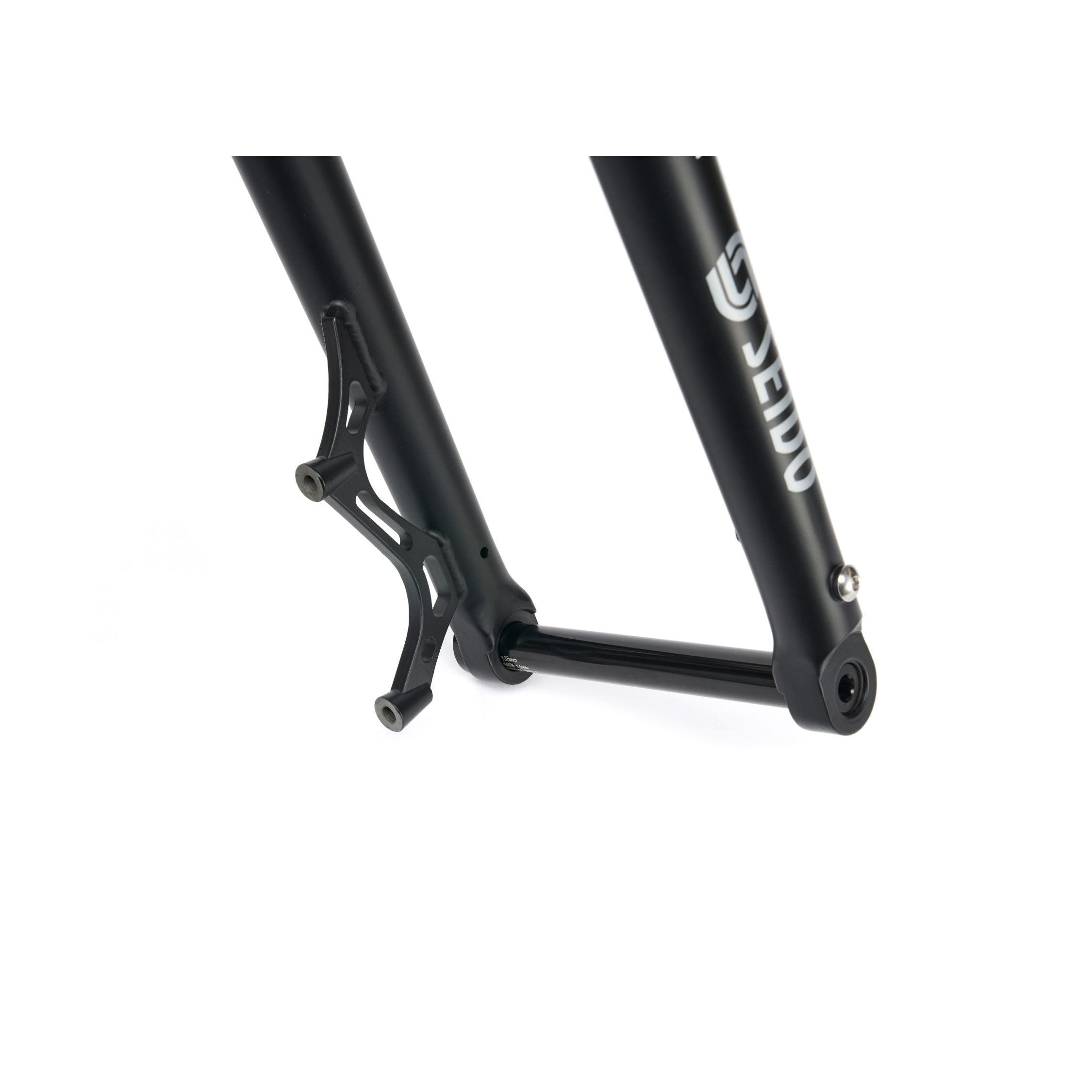

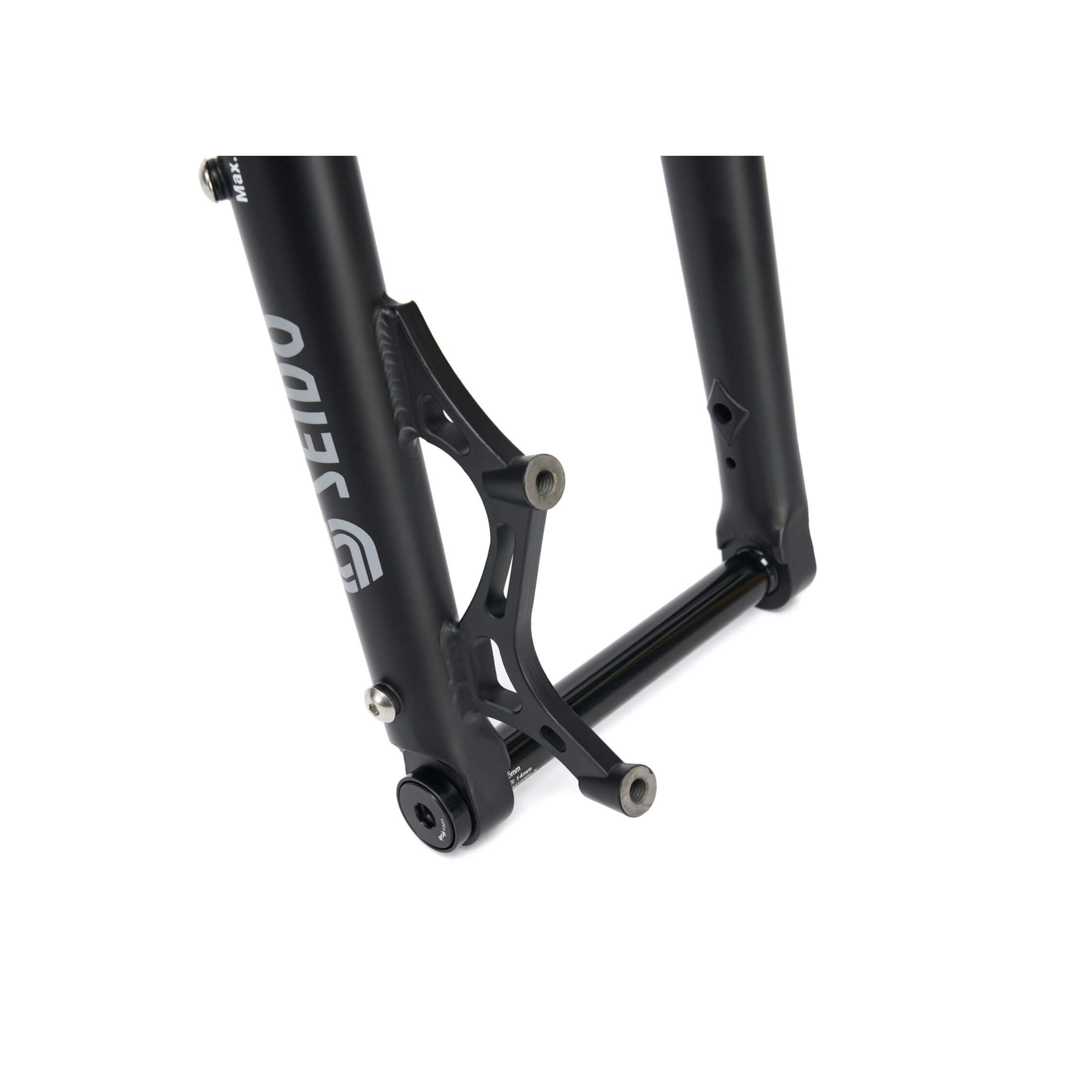

BRAKE
Post Mount, Max. 203 mm rotor size
INTERNAL ROUTING
-
MOUNTS
Triple cage / Head light / Mudguards / Lowrider rack
INCLUDED
Through-Axle, star nut, Cable port plugs
WEIGHT
1694 g (incl. Through-axle, 10 mounting bolts, uncut steerer)
TIRE CLEARANCE
27.5" x 3.0" / 29" x 3.0"
EXTRA INFO
Triple cage mounts, through-hole lowrider mounts, drilled crown, max. load per cage mount: 4.5Kg
ASTM RIDING CONDITION
3
THROUGH-AXLE TYPE
15 X 110 mm
TA TOTAL LENGTH (CLOSED)
135 mm
TA DIAMETER
15 mm
TA THREADING DIAMETER X PITCH
M15 X 1.5
MIN. THREAD LENGTH
14 mm
