| Frame |
4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork |
4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Handlebar |

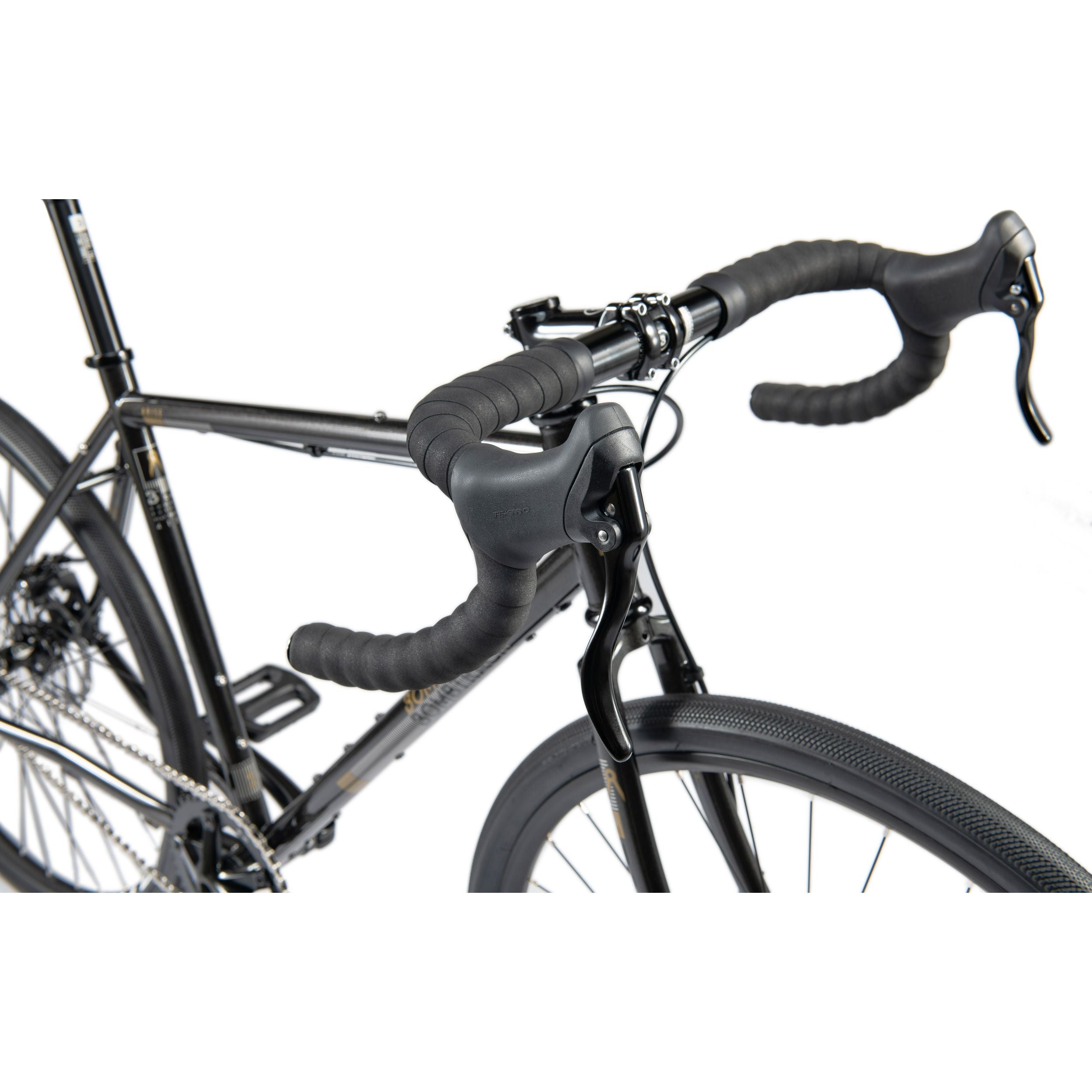

BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Grips |
BOMBTRACK CONTROL bar tape |
| Stem |
BOMBTRACK ROAM forged aluminium stem, -7° |
| Headset |

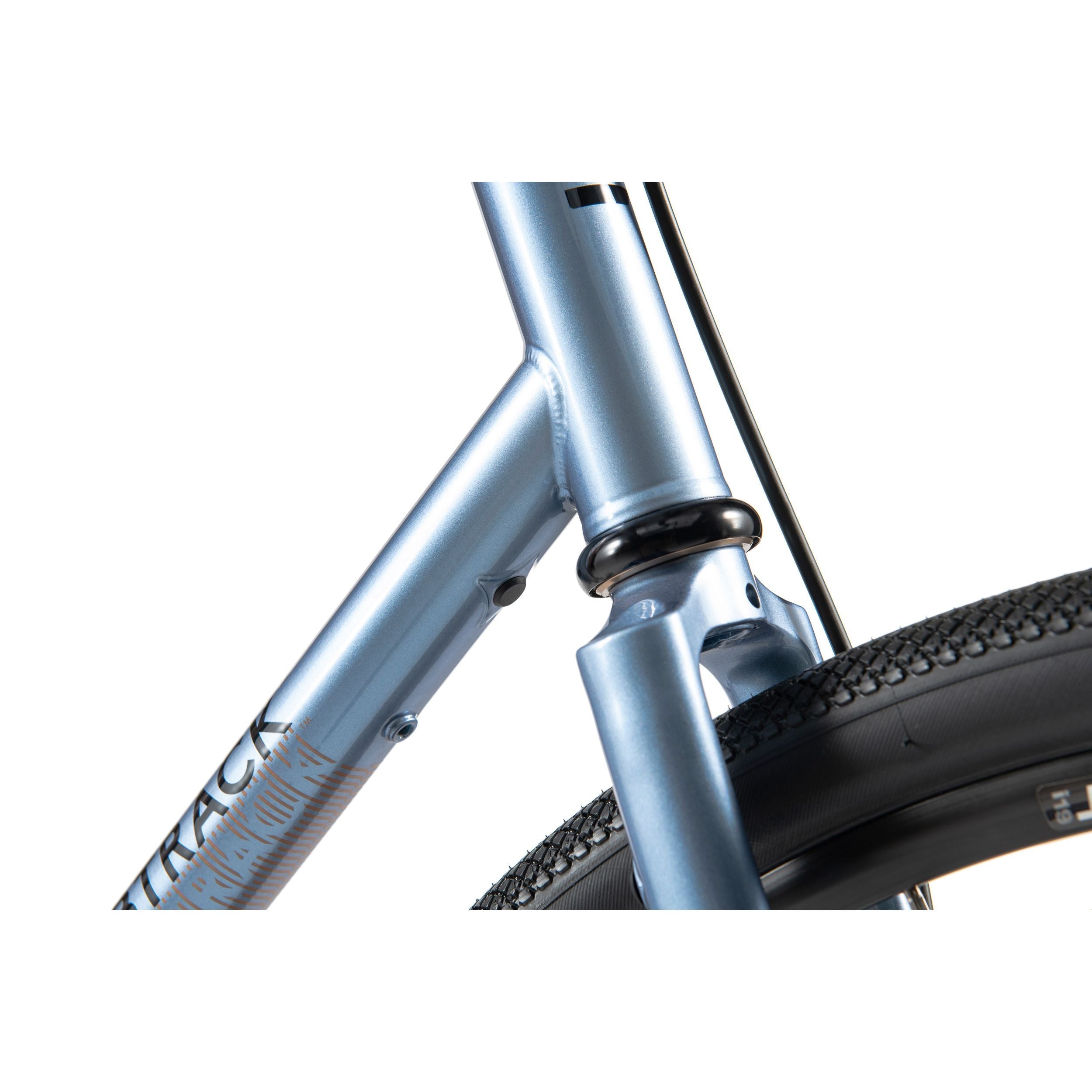

NECO H282 sealed external aheadset, 1.1/8'' |
| Levers |
TEKTRO RL-340 brake levers |
| Shifter |
- |
| Brakes |

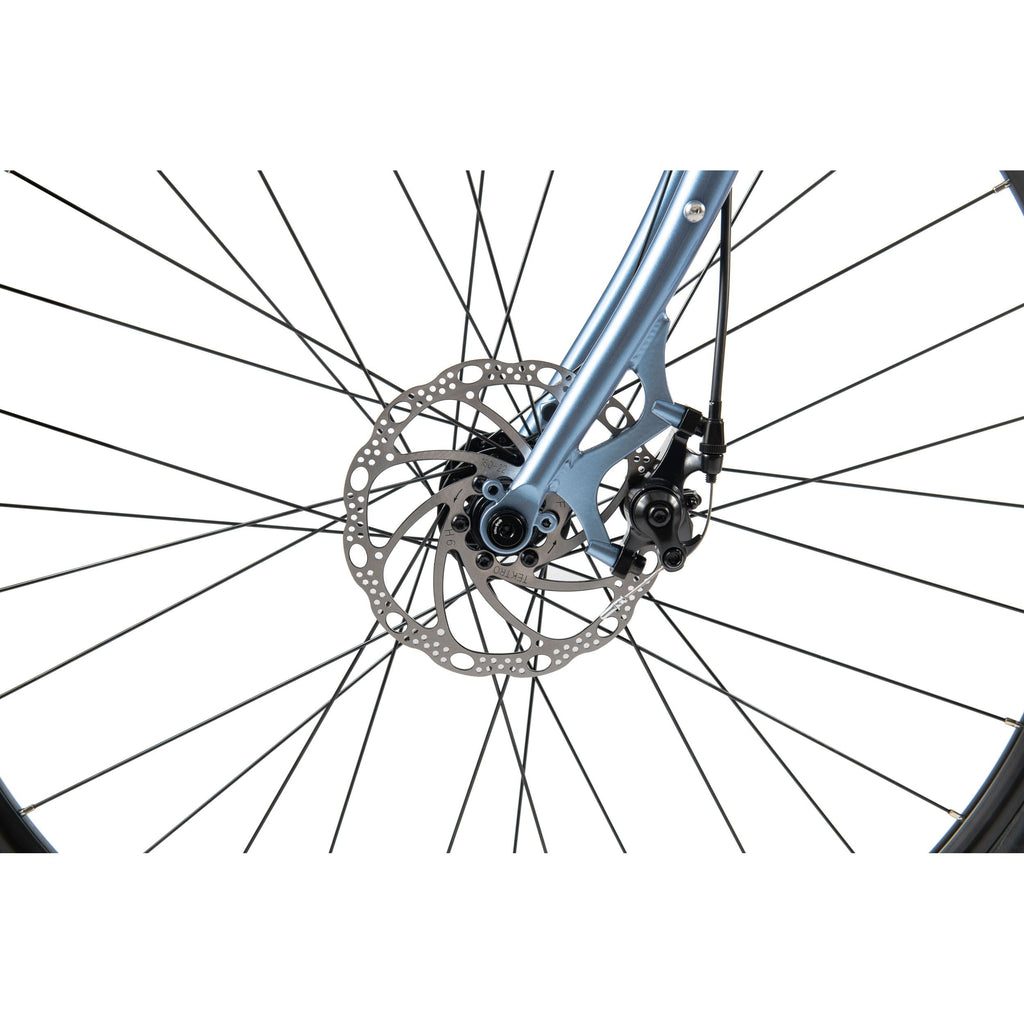

TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors |
| Crankset |
BOMBTRACK TAF19 aluminium crank, 24 mm spindle |
| BB |
BSA sealed BB, external cups |
| Pedals |
WELLGO B109N flat pedal |
| Chain |
KMC X9 chain, 1/2'' x 11/128'', 98L |
| Chainring |
BOMBTRACK RIDGE aluminium chainring, narrow-wide, 42 T |
| Cassette |
16 T heat treated crmo, 1/2'' x 11/128'' |
| Front derailleur |
- |
| Rear derailleur |
- |
| Front hub |
BOMBTRACK ARC sealed hub, 6-bolt disc |
| Rear hub |
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Through axle |
12 x 100 mm / 12 x 142 mm |
| Front rim |
WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim |
WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle |

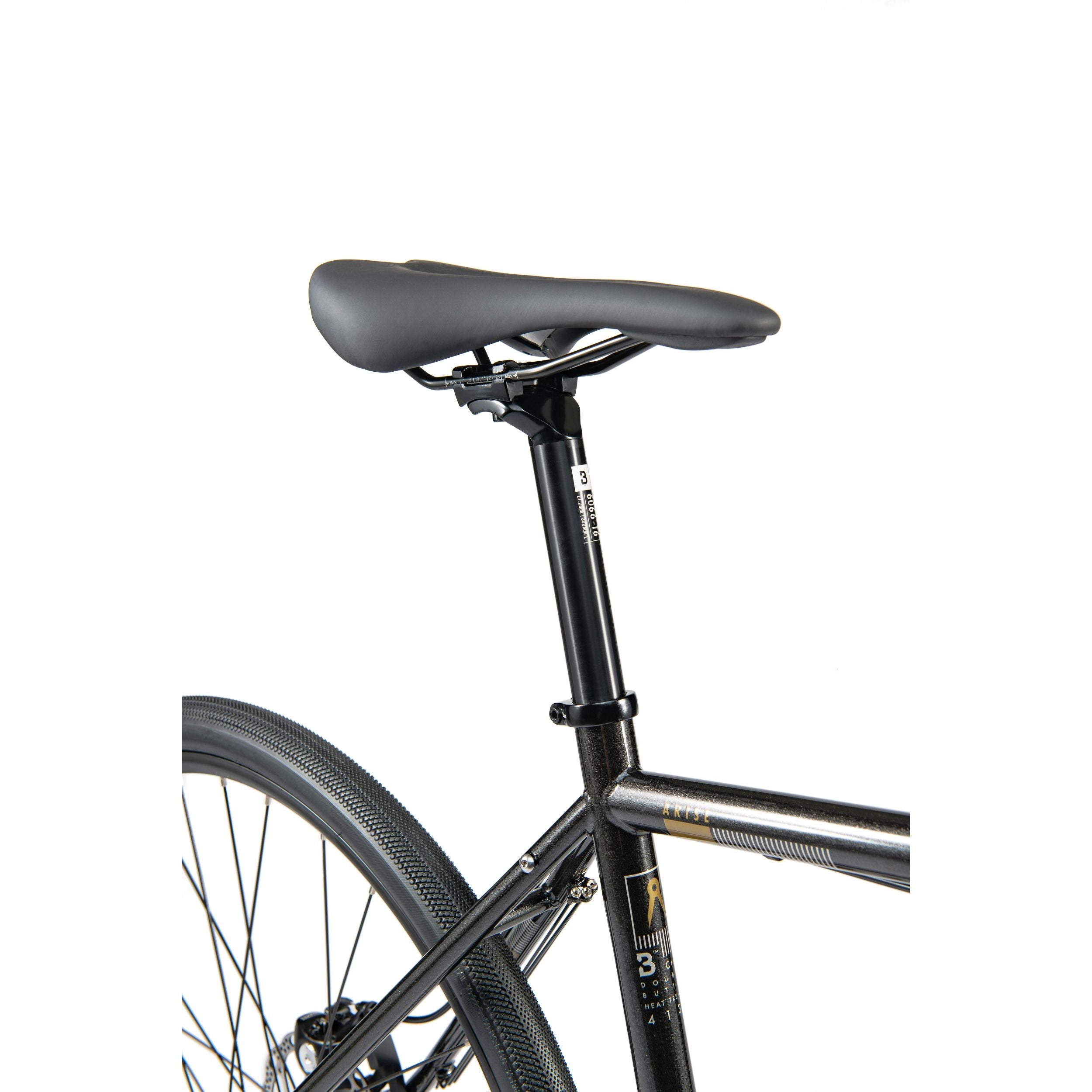

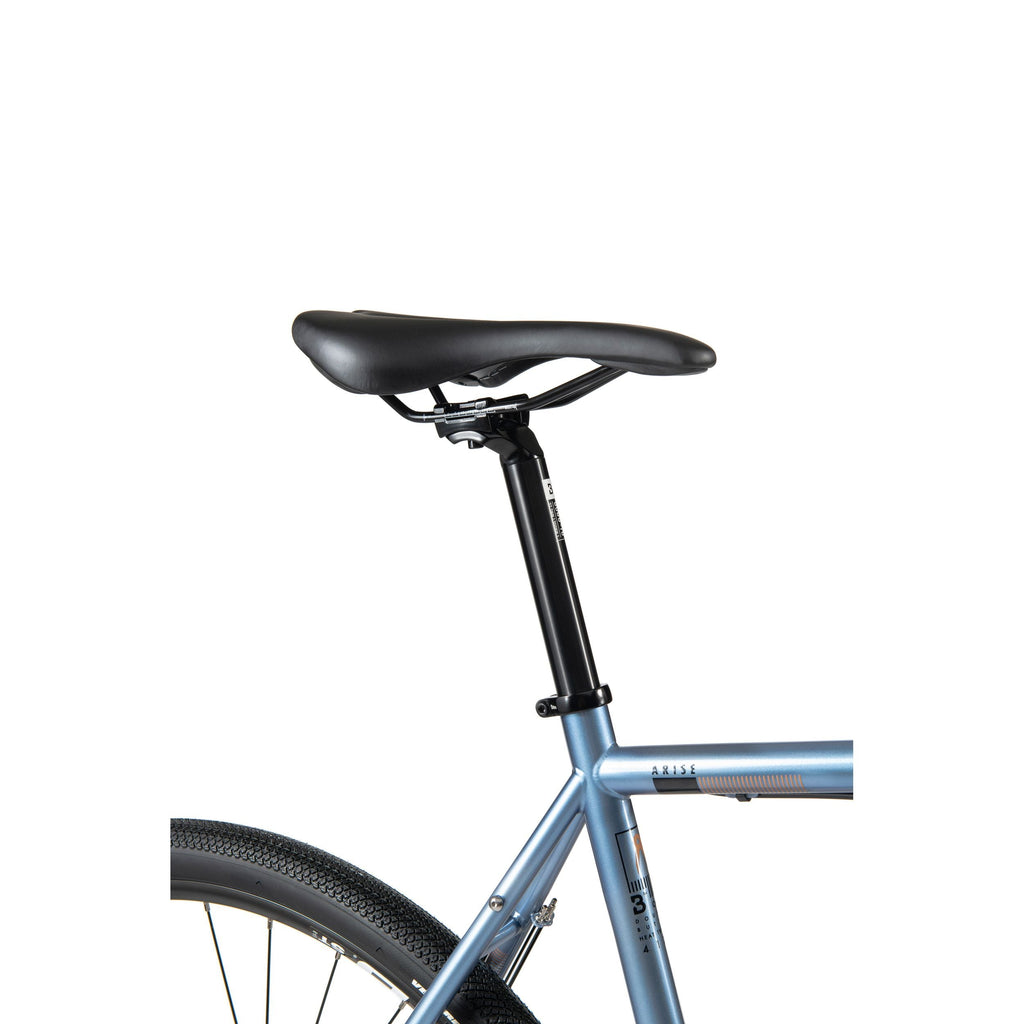

BOMBTRACK ORIGIN saddle |
| Seat post |
BOMBTRACK BEECH 27.2 mm x 300 mm |
| Seat clamp |
BOMBTRACK ORIGIN 29.8 mm |
| Front tire |
"XS - S 650B VEE TIRE SPEEDSTER 38-584 / M - XL 700C VEE TIRE SPEEDSTER 40-622 |
| Rear tire |
"XS - S 650B VEE TIRE SPEEDSTER 38-584 / M - XL 700C VEE TIRE SPEEDSTER 40-622 |
| Fender |
- |
| Rack |
- |
| Light |
- |
| Weight |
11.4 kg (size M) |
| Weight frameset |
2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight |
120 kg incl. luggage |
| ASTM riding condition |
2 |
