| Frame |
6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell |
| Fork |
6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

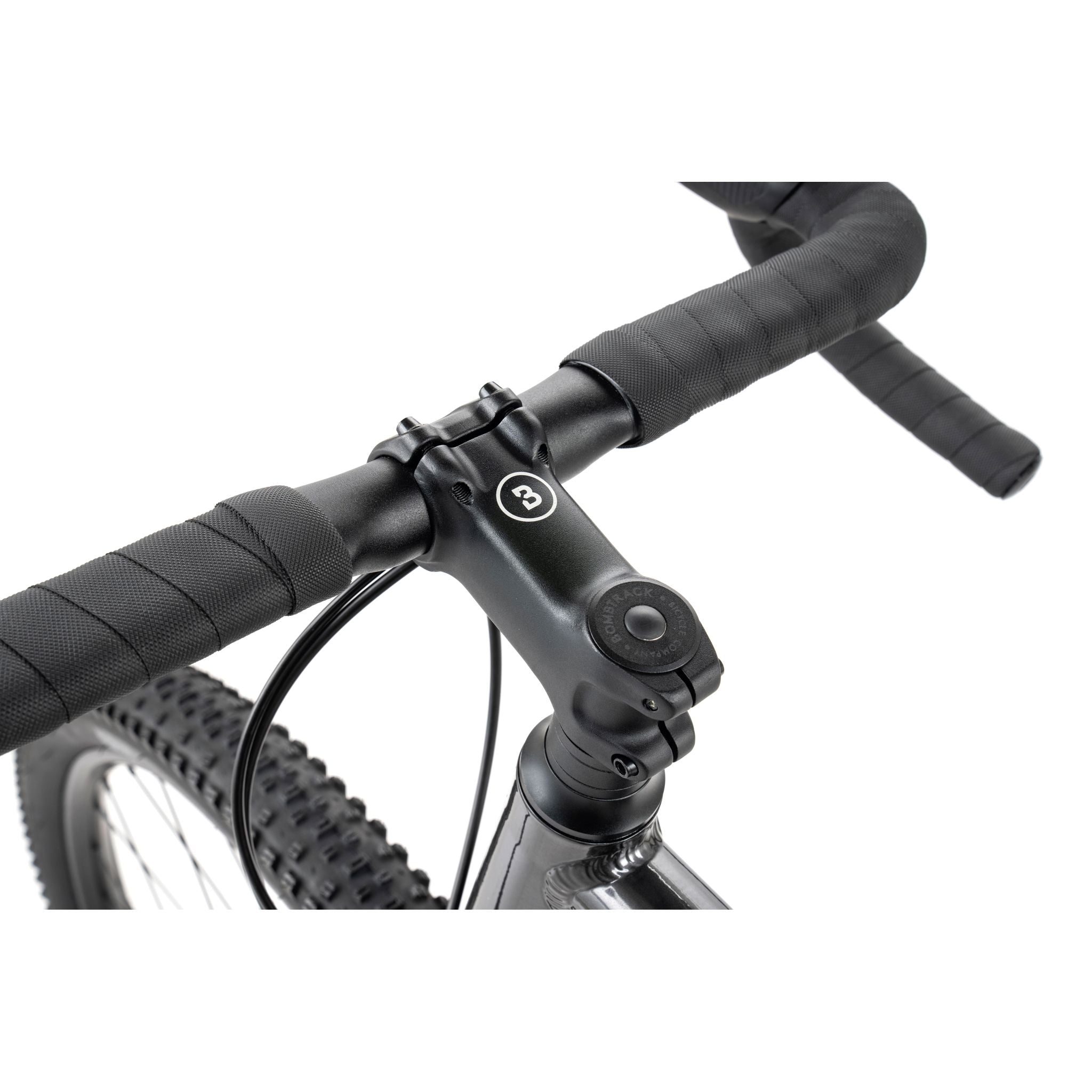

| Handlebar |
BOMBTRACK TACKLE gravel bar, 31.8 mm, 25° flare |
| Grips |
BOMBTRACK COMMAND bar tape |
| Stem |
BOMBTRACK TRAMP forged aluminium stem, 3° |
| Headset |
Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Levers |
SRAM Apex double tap mechanic |
| Shifter |
SRAM Apex double tap 1 x 11 |
| Brakes |
TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors |
| Crankset |
BOMBTRACK AMES forged aluminium crank, 24 mm spindle |
| BB |
BOMBTRACK T47 internal sealed BB for 24 mm spindle |
| Pedals |
- |
| Chain |
KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring |
Steel, narrow-wide, 36 T |
| Cassette |
SRAM PG-1130 11-speed, 11 - 42 T |
| Front derailleur |
- |
| Rear derailleur |
SRAM APEX 1, clutch, long cage |

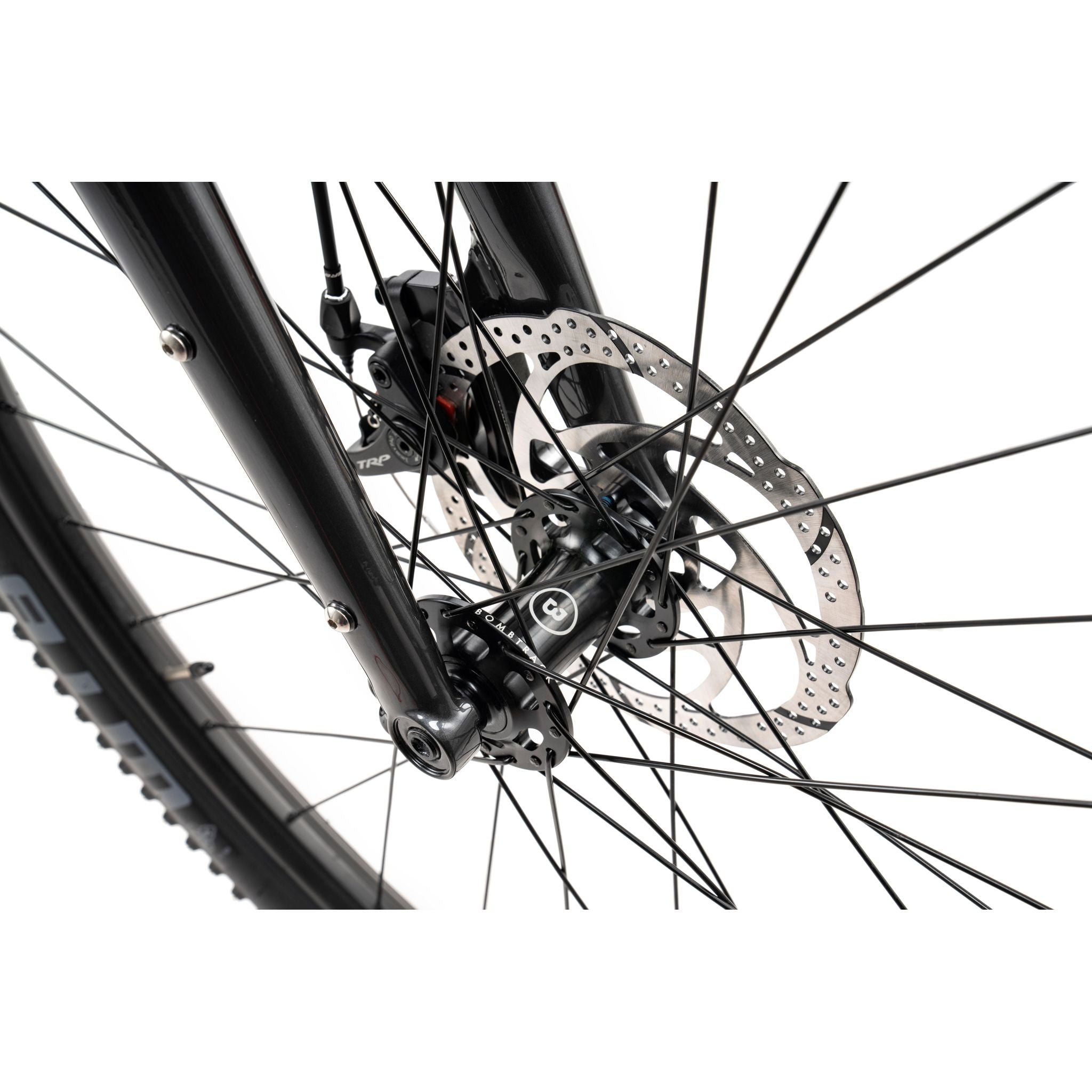

| Front hub |
BOMBTRACK ARC sealed hub, 6-bolt disc |
| Rear hub |
BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Through axle |
12 x 100 mm / 12 x 142 mm |
| Front rim |
WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim |
WTB ST i23 double wall, TCS 2.0, 32h |

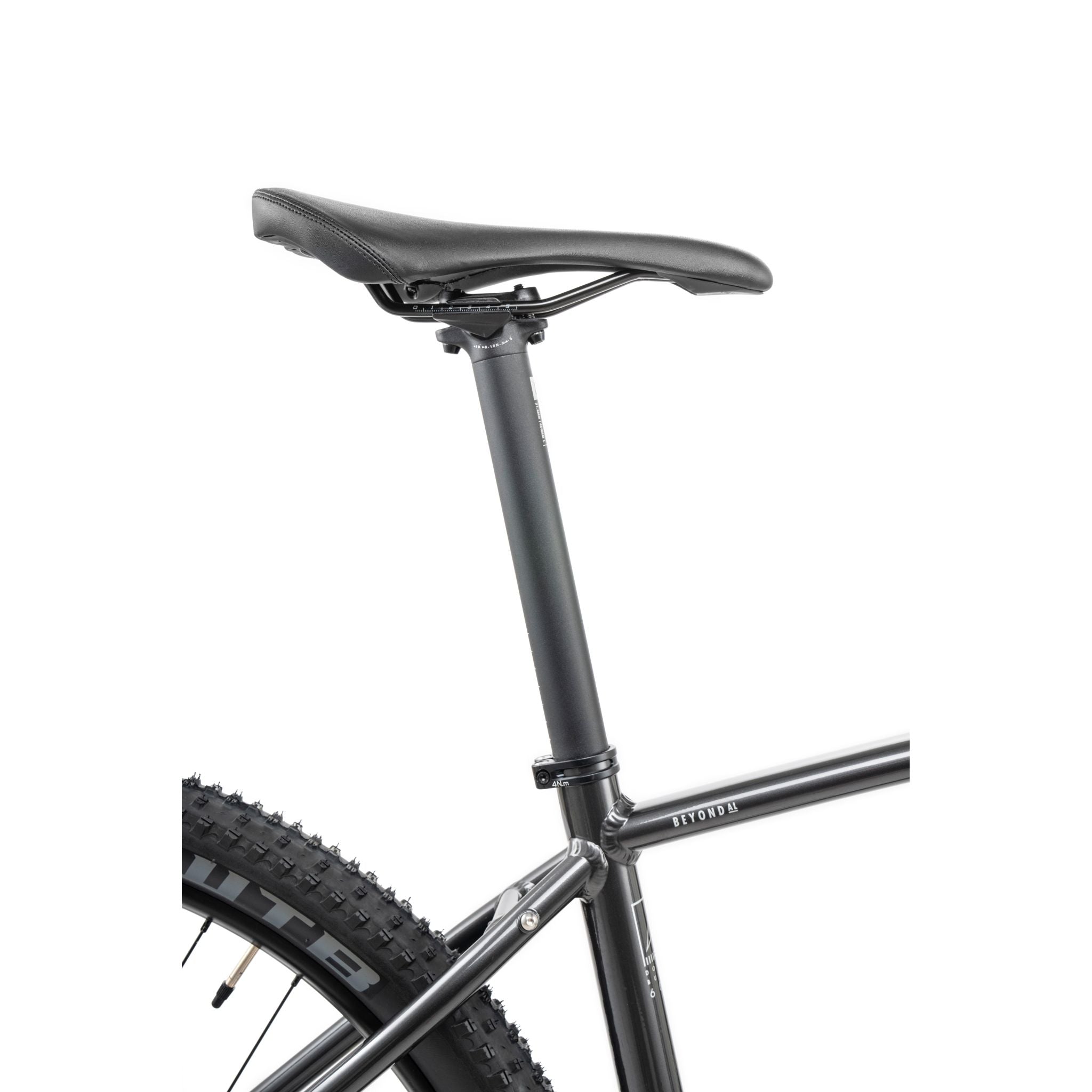

| Saddle |
BOMBTRACK FUZZ |
| Seat post |
SEIDO YEW aluminium seatpost, 31.8 mm x 400 mm |
| Seat clamp |
BOMBTRACK PRIME 34.9 mm |
| Front tyre |
WTB RANGER TCS LIGHT / FAST ROLLING S 27.5'' x 2.0'' / M - L 29'' x 2.0'', tubeless ready |
| Rear tyre |
WTB RANGER TCS LIGHT / FAST ROLLING S 27.5'' x 2.0'' / M - L 29'' x 2.0'', tubeless ready |
| Fender |
- |
| Rack |
- |
| Kickstand |
- |
| Light |
- |
| Weight |
11.64 kg (size M) |
| Weight frameset |
TBA g frame (size M, incl. TA, bolts, seatclamp, hanger) / TBA g fork (300 mm steerer, incl. TA) |
| Maximum rider weight |
140 kg incl. luggage |
| ASTM riding condition |
2 |
