| Frame |

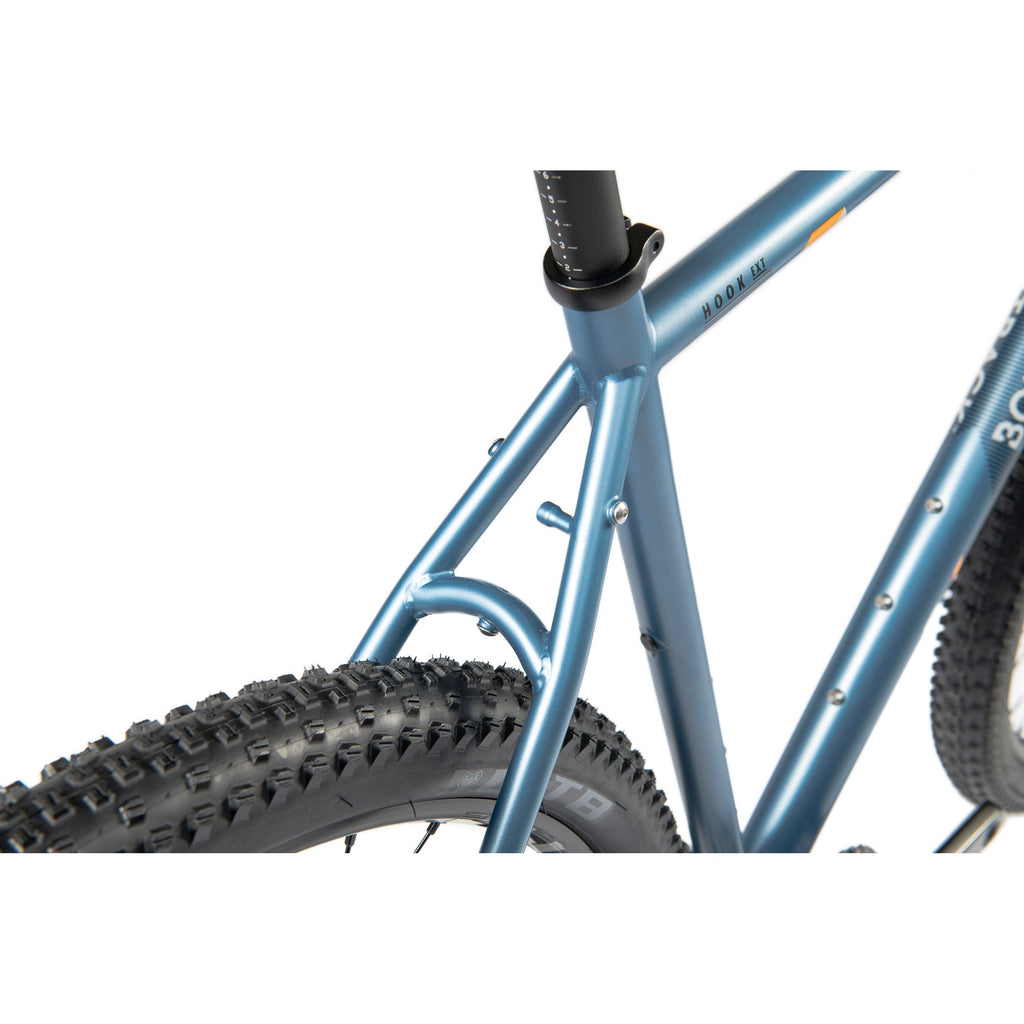

COLUMBUS CROMOR double butted tubing, TA, rack / fender mounts, internal light cable routing, rear light mount, 86.5 mm T47 BB shell |
| Fork |
Full carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts (can double as fender mounts), internal hub dynamo cable routing |
| Handlebar |
BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Grips |
BOMBTRACK ESCAPE bar tape |
| Stem |
BOMBTRACK ROAM forged aluminium stem, -7° |
| Headset |
Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Levers |
SRAM RIVAL 1 double tap hydraulic |
| Shifter |
SRAM RIVAL 1 double tap 1 x 11 |
| Brakes |
SRAM RIVAL flat mount hydraulic disc brakes with 160 mm rotors |
| Crankset |
"BOMBTRACK LYER forged aluminium crank, direct mount interface |
| (SRAM compatible), 30 mm spindle" |
| BB |
BOMBTRACK T47 internal sealed BB for 30 mm spindle |
| Pedals |
- |
| Chain |
KMC X11 EPT Anti Rust chain, 1/2'' x 11/128'', 114L |
| Chainring |
CNC machined aluminium, narrow-wide, 40 T |
| Cassette |
SRAM PG-1130 11-speed, 11 - 42 T |
| Front derailleur |
- |
| Rear derailleur |
SRAM RIVAL 1, clutch, long cage |
| Front hub |
BOMBTRACK TAU sealed hub, 6-bolt disc |
| Rear hub |
BOMBTRACK TAU sealed hub, 11-speed, 6-bolt disc |
| Through axle |
12 x 100 mm / 12 x 142 mm |
| Front rim |
WTB ST Light i25 double wall, TCS 2.0, 32h |
| Rear rim |
WTB ST Light i23 double wall, TCS 2.0, 32h |
| Saddle |

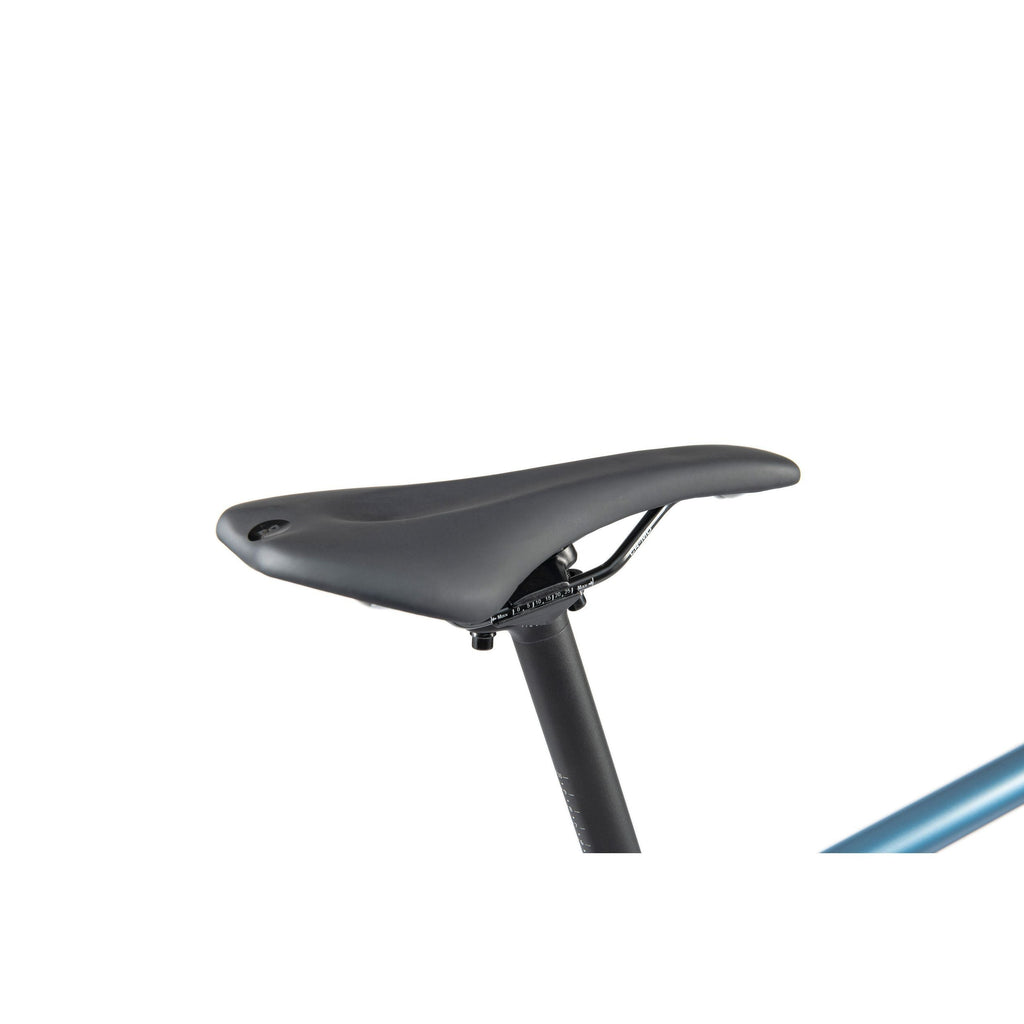

BOMBTRACK COMP saddle |
| Seat post |
BOMBTRACK YEW aluminium seatpost, 27.2 mm x 300 mm |
| Seat clamp |
BOMBTRACK ORIGIN forged aluminium seat clamp, 29.8 mm |
| Front tire |
WTB RANGER TCS LIGHT / FAST ROLLING 27.5'' x 2.0'', tubeless ready |
| Rear tire |
WTB RANGER TCS LIGHT / FAST ROLLING 27.5'' x 2.0'', tubeless ready |
| Fender |
- |
| Rack |
- |
| Light |
- |
| Weight |
11.2 kg (size M) |
| Weight frameset |
2710 g frame (size L, incl. TA, hanger) / 600 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight |
130 kg incl. Luggage |
| ASTM riding condition |
2 |
